Description

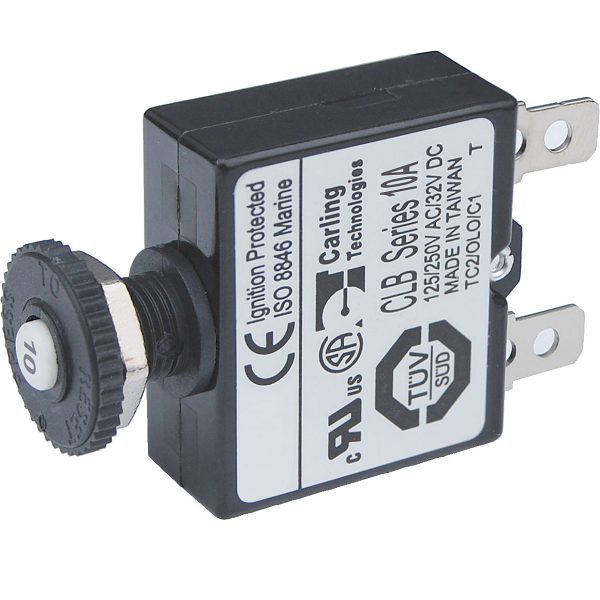

Blue Sea Systems Circuit Breaker Push Button QC 10A

Specifications:

Amperage 10A
Maximum Voltage 32V DC
Mounting Panel mount 3/8-27 UNS
Breaker Type Thermal trip, manual push button reset only
Terminal Type 1/4 male quick connect
Breaking Capacity 3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Screw Clamp Torque 6 in-lb (0.68 Nm)
Weight 0.06 lb (0.03 kg)
