Description

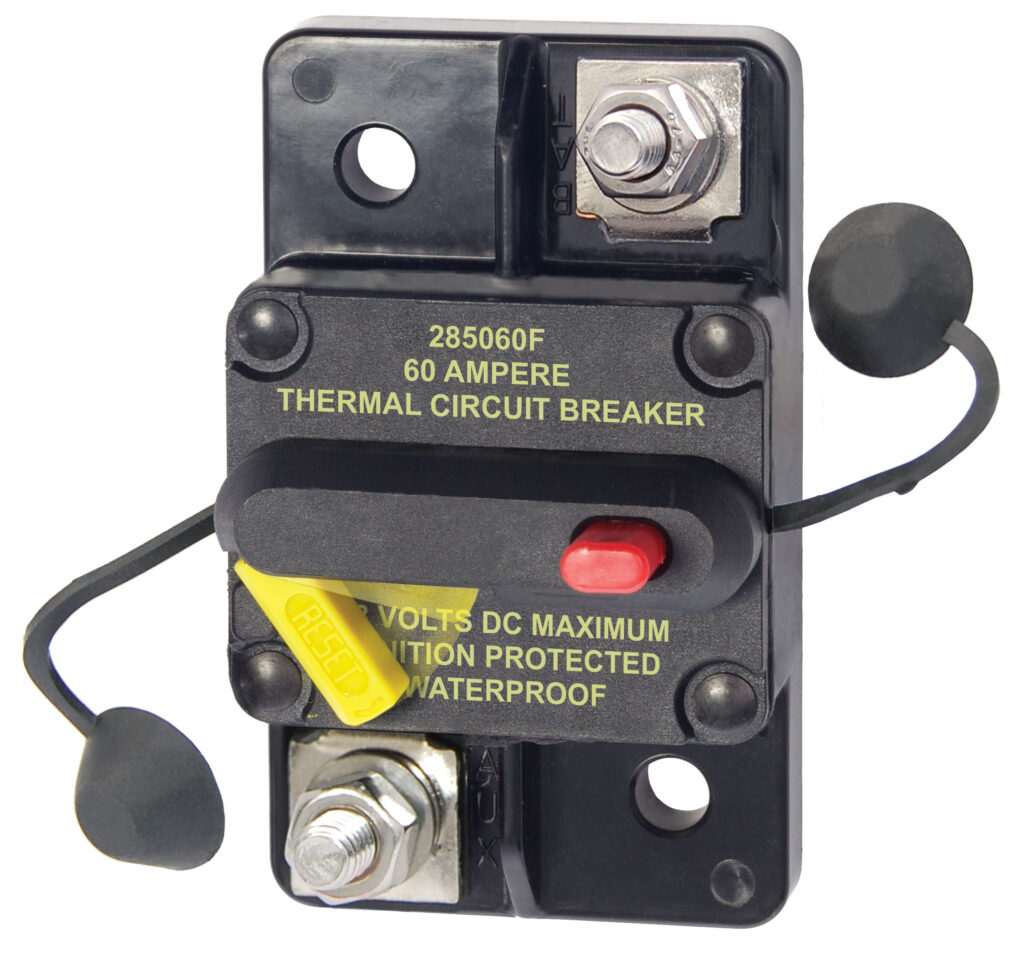

Automatic Fuse Blue Sea 60A

Blue Sea Automatic Fuse, Model 7184. Below are the features:

– Visible reset lever shows open condition
– Ignition protected – Safe for installation on board gasoline powered boats
– Meets SAE J1171 external ignition protection requirements
– Weatherproof
– Combines switch and circuit breaker functions in one unit*
– “Trip Free” – cannot be held closed after a trip

Features Blue Sea Automatic Fuse 60A
Amperage: 60A
Maximum Voltage: 48V DC
Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud Torque 50 in-lb (5.65 Nm)
Interrupt Capacity 3000A @ 48V
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Circuit Breaker Class Type III – switchable/manual reset – trip free
Terminal Stud M6 (accepts 1/4″ Ring Terminal)
Weight 0.50lb (0.23kg)
