Description

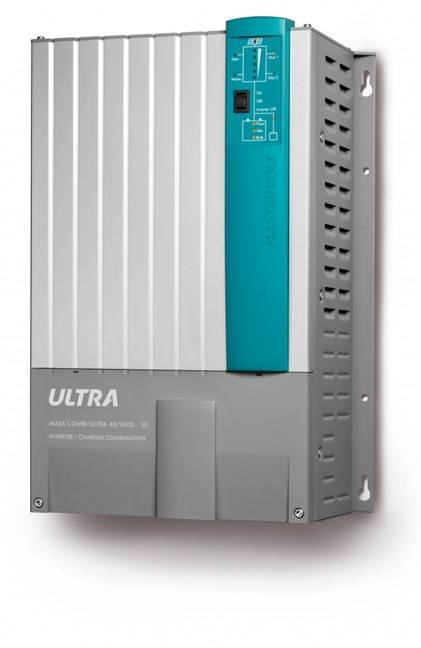

Mastervolt Acculader-Omvormer Mass Combi Ultra 48/3500-50

The new Mass Combi Ultra series is a compact inverter/charger combination with an intelligent switching system, an extremely efficient MPPT solar charge regulator and a separate second charger, all combined in a sturdy, high-quality housing that is easy to install. The Mass Combi Ultra contains revolutionary technology, including the latest V6 high-frequency conversion technology in combination with an extremely fast and powerful DSP control. The new Mass Combi Ultra fits perfectly into a Mastervolt system setup. You can easily connect all components via MasterBus and operate and monitor your installation completely intuitively. This is possible with just one MasterView Easy touchscreen. On this touchscreen you can read all information from the Combi, the batteries and other sources such as generator, grid power or solar panels and you can control the operation. The system is also suitable for Digital Switching, Mastervolt’s decentralised digital switching system. On the DC side, the Mass Combi Ultra has interesting features such as a solar input with a super-efficient, integrated MPPT solar charge regulator and an independent second charger output, which in most cases can charge both 12V and 24V batteries. The Mass Combi Ultra has two separate AC inputs for generator or mains power, both adapted to the specific characteristics of each power source. Thanks to the super-fast control, the transition to and from the inverter is seamless and users enjoy uninterrupted power without flickering or failure of sensitive equipment. The Mass Combi Ultra not only offers ‘stand-alone’ functionality but also parallel use and 3-phase operation for larger applications up to 35 kW.

The Mass Combi Ultra series consists of various models, ranging from 3000 to 3500 Watt. For higher capacities up to 35 kW, the Combi Ultra can be connected in parallel or 3-phase configuration. An efficient integrated solar charge controller gets the most out of your solar panels.

The Mass Combi Ultra is equipped with the latest technology. The new ‘V6’ inverter technology ensures low no-load consumption and the ultra-fast Digital Signal Processor ensures seamless switching between all available energy sources. With Power Assist, voltage dips and power failures are a thing of the past, even with a weak electricity connection or small generator. In addition, all Mass Combi Ultra models are equipped with MasterBus.
Higher yield from solar energy

Mastervolt has used its experience in grid-connected solar solutions to develop a super-efficient, integrated MPPT solar charge controller. Compared to regular solar charge controllers, the advanced MPPT technology achieves up to 30% more yield from the solar panels. The solar panels supply hidden consumers with energy and keep your batteries in optimal condition.
Silent operation

The Combi Ultra can supply up to 50% of the charging current or inverter capacity without fan cooling. This is ideal during night-time hours; if little power is consumed, the fan will not turn and the Combi will operate silently. If maximum power is required or when it is very warm around the Combi, the Active Optima Cooling concept regulates the fan speed linearly, so that it never unnecessarily turns too fast or makes a ‘ticking’ sound.
Exceptional performance

The inverter is silent, clean and efficient. Even at extreme ambient temperatures, the full capacity is available. Pure sine wave voltage and a peak power of 200% guarantee a problem-free start of even the heaviest consumers.
Optimal use of your batteries

The powerful battery charger charges two battery banks simultaneously and delivers full charging current up to 40 °C ambient temperature. Precise charging characteristics and low ripple current guarantee a long service life of your batteries. The 24 V version can combine 12 V and 24 V battery sets.

Specificaties sinusomvormer
Nominale DC spanning     48 V (38–62 V)
Uitgangsspanning     230 V (± 2 %), instelbaar 180-260 V
Uitgangsfrequentie     50/60 Hz (± 0,005 %), configureerbaar
Spanningsvorm     zuivere sinus, Thd < 1 % onder normale omstandigheden
Continue vermogen bij 40 °C / 104 °F, cos phi 1     3500 W
Max. piekbelasting     7000 W
Max. rendement     ≥ 93 %
Max. rimpel op DC (accu bij vollast)     < 5 %
Nullastverbruik op DC (AAN/omvormer UIT/UIT/energiezuini     16 W / 4 W / 0 W / 7 W
Parallelschakeling     ja, max. 10 standaard
3-Fase configuratie     ja, max. 3×3
Synchroniseren met net/generator     ja


Battery Charger Specifications
Input Voltage Range 184–275 V
Max. Input Current 16 A
Max. charging current at 40 °C / 104 °F 50 A at 57 V, adjustable
Charging voltage 2nd output 12/24 V adjustable
Charging current 2nd output 10 A
Battery temperature sensor yes, included
Battery voltage sensor via MasterShunt, otherwise automatic compensation

Specifications transfer switch
AC input 1 50 A (generator only, switched)
AC input 2 30 A (mains voltage only, switched)
AC output 1 67 A
AC output 2 50 A (switched)
AC input fuse no
Switching speed seamless (< 1 ms)
Switching switch voltage range 184-275 V, adjustable
Switching switch frequency range 35-68 Hz, adjustable

General specifications
Display/readout LED display
Dimensions, hxwxd 472 x 318 x 178 mm
Weight 15.3 kg
Directives CE, ABYC

Technical specifications
Charging characteristic 3-step+ (IUoUo, fully automatic)
Battery models gel/AGM/MLI/wet/spiral/traction
Recommended battery capacity ~ 100-300 Ah (based on gel batteries, other models may differ)
Earth relay yes, configurable
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C -13 °F to 140 °F
Protection class IP23 (vertical mounting)
Safety class IEC protection class I
Humidity protection protective coating, max. 95 % relative humidity, non-condensing
Protections overtemperature, overload, short circuit, high/low battery voltage
Cooling maintenance-free vario fans
Power Assist yes
MasterBus compatible yes
