Description

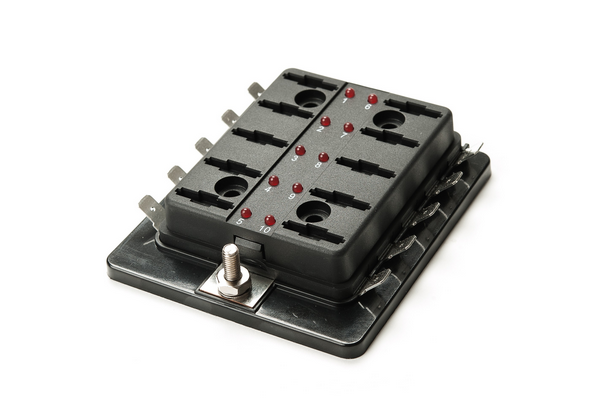

LED Fuse Holder Standard Blade Fuses 10 Pin

10 way standard blade fuse box with individual LEDs that light up to indicate when a fuse has blown. Power is fed via a common stud from each of the 10 circuits output connections 6.3mm contact blades on the sides of the unit. Supplied with clear protective cover that clips into place and the base has 4 mounting holes for surface mounting. The central entry is an M5 stud.

Fuseboxes type LED Fuse Boxes
Number of Connections 10 Way
Number of Fuses 10
Remarks Connection 6.3mm terminal
Maximum Amps 30A
Max Voltage 32V
Temperature Rating -20ºC – +85ºC
Length 95.0mm
Width 85.5mm
Height 35.5mm
