Description

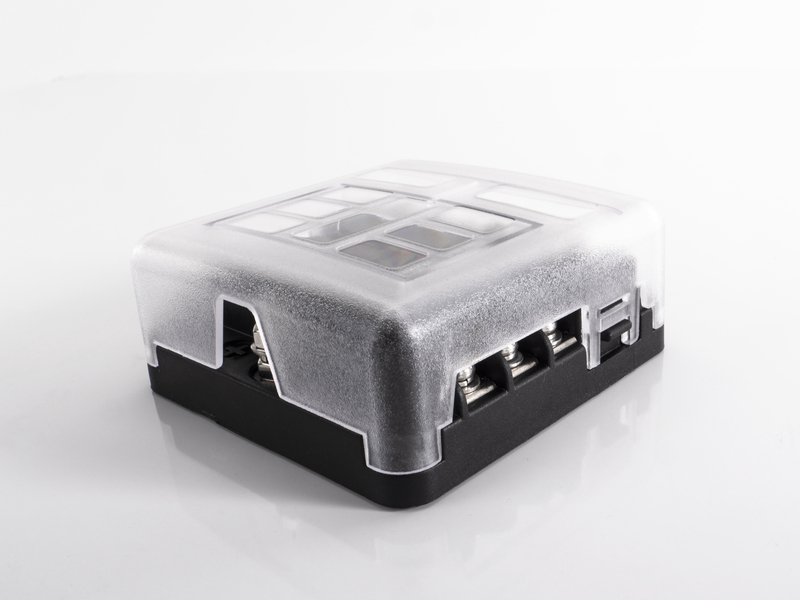

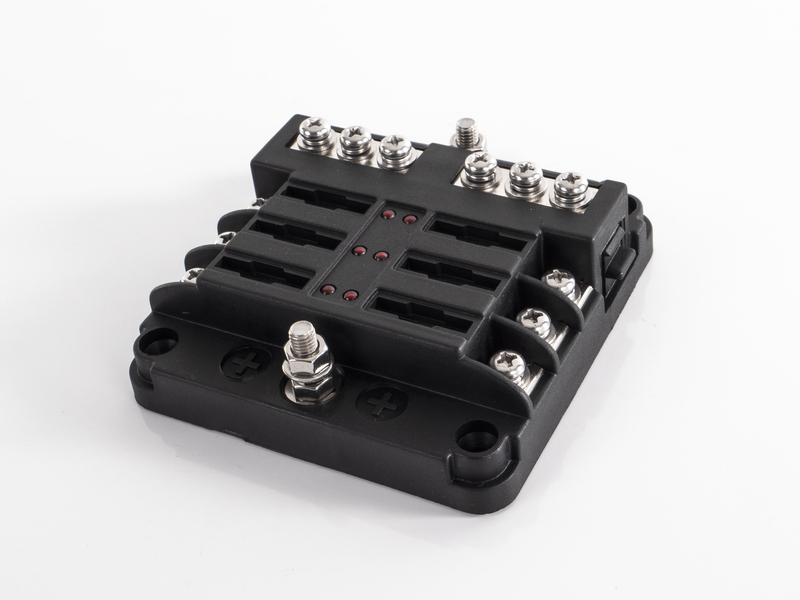

Standard 6-Way Blade Fuse Holder – With LED

Compact fuse and distribution box for up to six circuits. A red LED light indicates immediately when a fuse has blown. This fuse holder has a central input and central output which are connected via M5 studs. The 6 connections of both the busbar and the fuses all have an M4 screw, The fuse holder accepts standard blade fuses and is supplied with 4 screws to mount the fuse holder. A sticker sheet is also supplied to give the fuses the function title. You can choose from 71 stickers. Below are the properties of this Standard Blade Fuse Holder 6-way – With LED.

Features Standard Blade Fuse Holder 6-Way – With LED
– Number of circuits: max. 6
– Load capacity per circuit: max. 30 A
– Total load: max. 100 A
– Voltage: max. 32V
– Dimensions (L x W x H): 87.8 x 88 x 36.5 mm

Included:
– 1x Standard Blade Fuse Holder 6-Way – With busbar and LED
– 1x Plastic cover
– 4x Mounting screws
– 71 different information labels
