Description

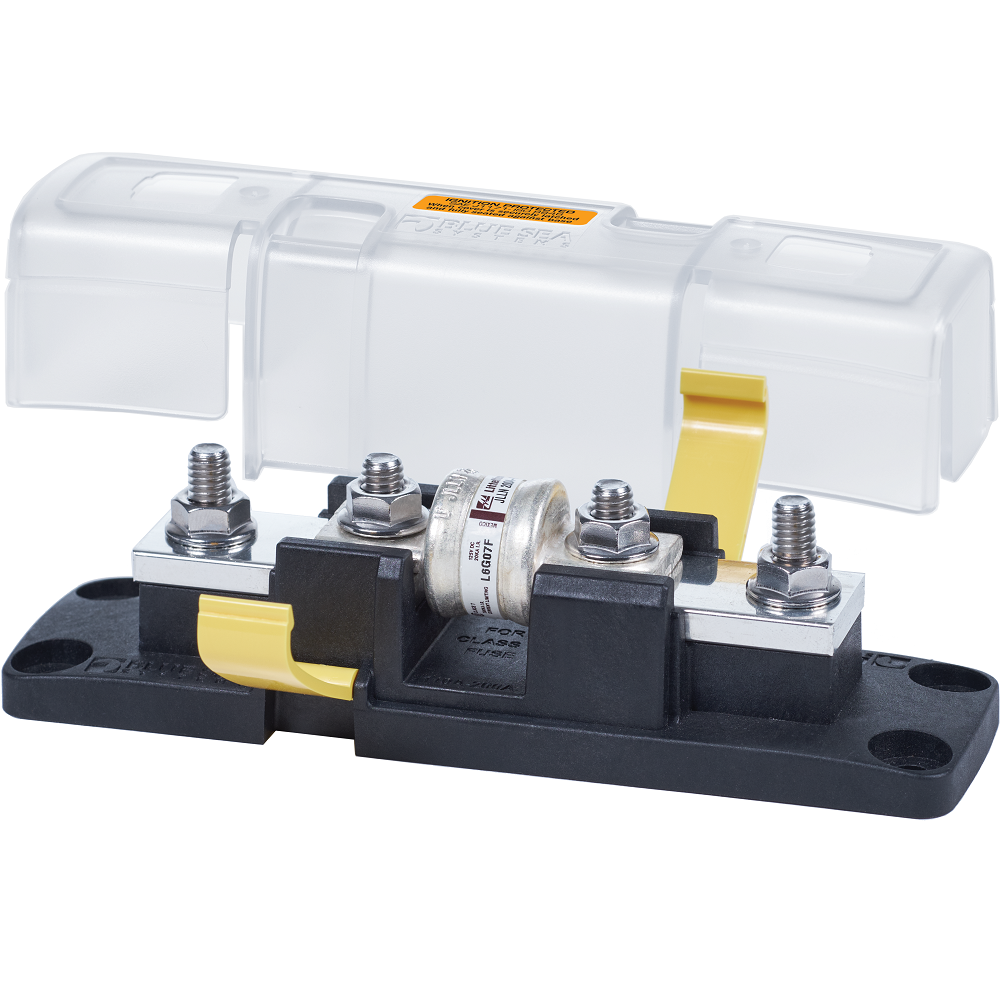

Blue Sea Class T Fuse holder 110A to 200A

Blue Sea Class T fuse holder for the smaller Class T fuses 110A to 200A. Below are the further specifications of this Class T fuse holder.

Specifications
Cable Size Up to 4/0 AWG (=120mm2)
Ignition Protected Yes
Maximum Amperage 160A [BEST PRACTICE: Limit the amount of current in the circuit to 80% of the fuse rating.]
Maximum Voltage 160V DC
Fuse Mounting Blocks Tin-Plated Copper
Maximum Torque 190 in-lb (21.47 Nm)
72 in-lb (8.13 Nm)
Mounting Fastner Size 1/4″ or M6 Hardware
Terminal Stud Size 1/4″-20 (M6)
Weight 1.10lb (0.5kg)
